NEXA-MAG for RED DSMC 1 & 2
NEXA-MAG for RED DSMC 1 & 2
Couldn't load pickup availability
SSD Media for DSMC 2®, DSMC 1®

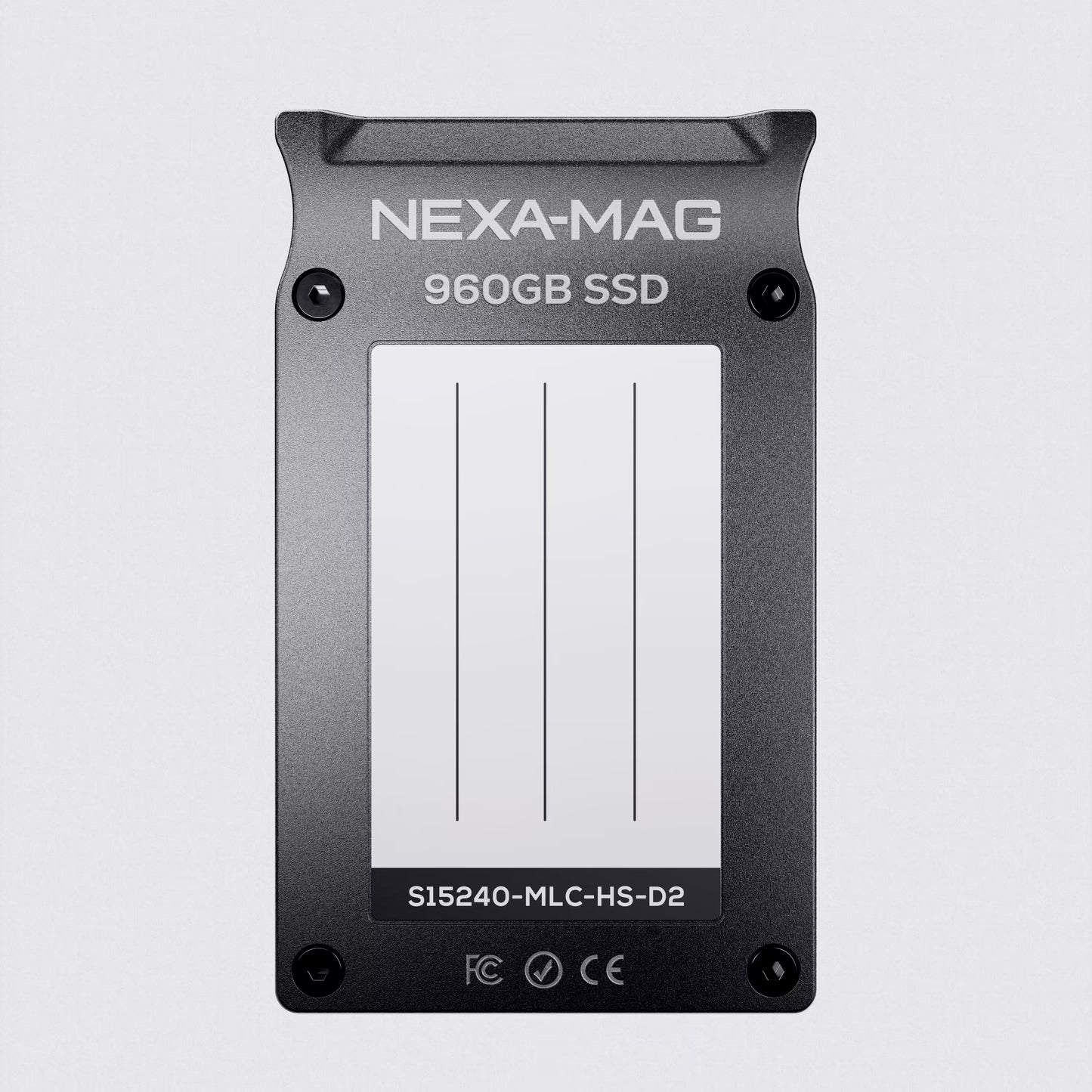

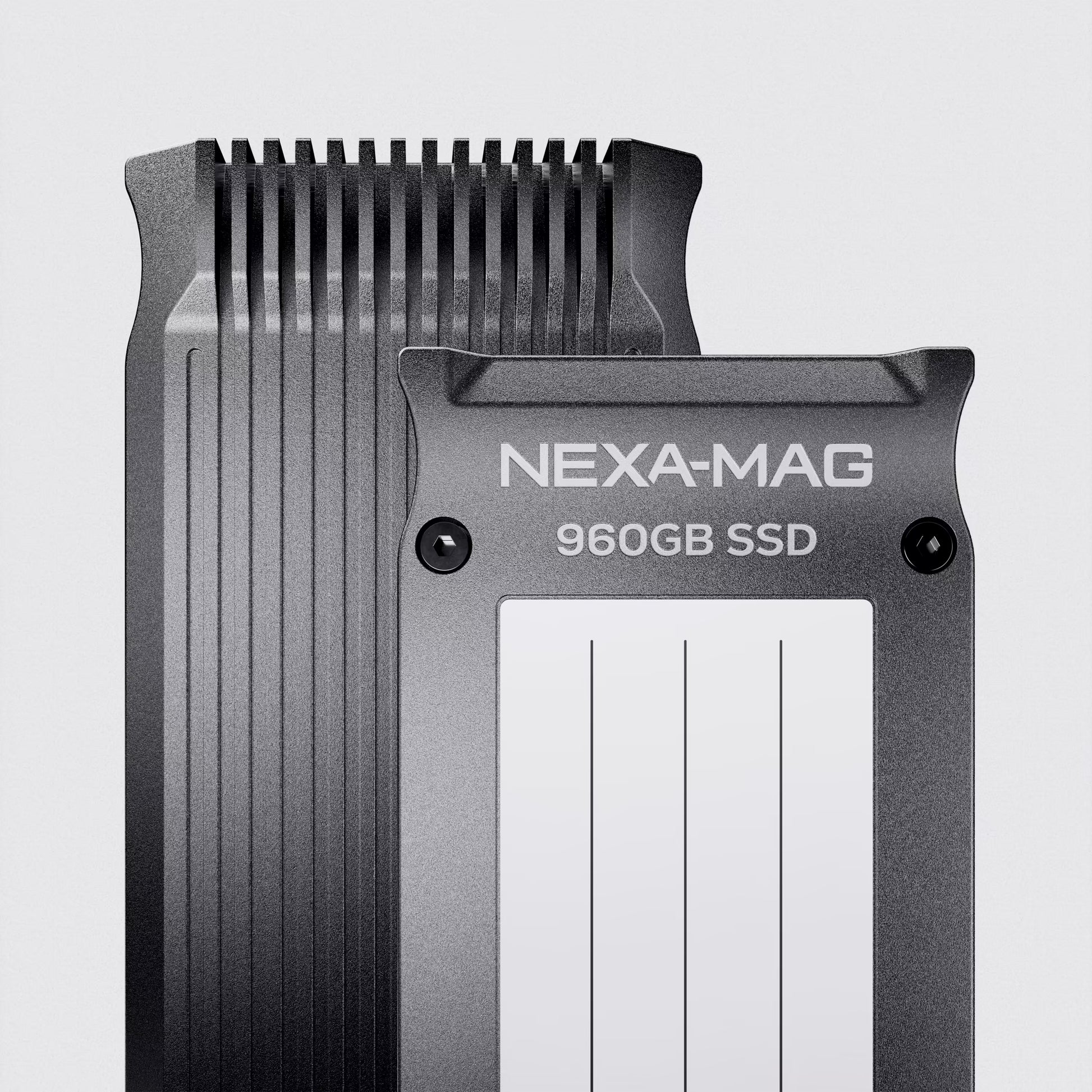

The NEXA-MAG is a high-performance media solution built for RED DSMC1 and DSMC2 cameras. Designed as a direct replacement for RED Mini-Mags, it offers very fast speeds, CNC-machined durability, and rock-solid reliability at a more accessible price point. Compatible with RED media modules, it’s trusted by professionals worldwide. Built to last. Backed by a 2-year warranty. Available in 480GB and 960GB..
Included
Included
1x NEXA-MAG (Choose capacity: 480GB or 960GB)
1x Quick Start Information Sheet
Compatibility
Compatibility
NEXA-MAG is fully compatible with RED cameras that use RED Mini-Mags, including:
RED DSMC2 Series
DRAGON-X 6K S35
DRAGON-X 5K S35
DRAGON-VV 8K VV
MONSTRO 8K VV
WEAPON 6K S35
WEAPON 8K S35
HELIUM 8K S35
EPIC-W S35
GEMINI 5K S35
RED DSMC1 Series
SCARLET MYSTERIUM-X
EPIC MYSTERIUM-X
SCARLET DRAGON
EPIC DRAGON
RED RANGER Series
RANGER GEMINI 5K S35
RANGER HELIUM 8K S35
RANGER MONSTRO 8K VV
⚠️ Note: RED KOMODO, V-RAPTOR, and DSMC3 series cameras are not compatible.
Construction

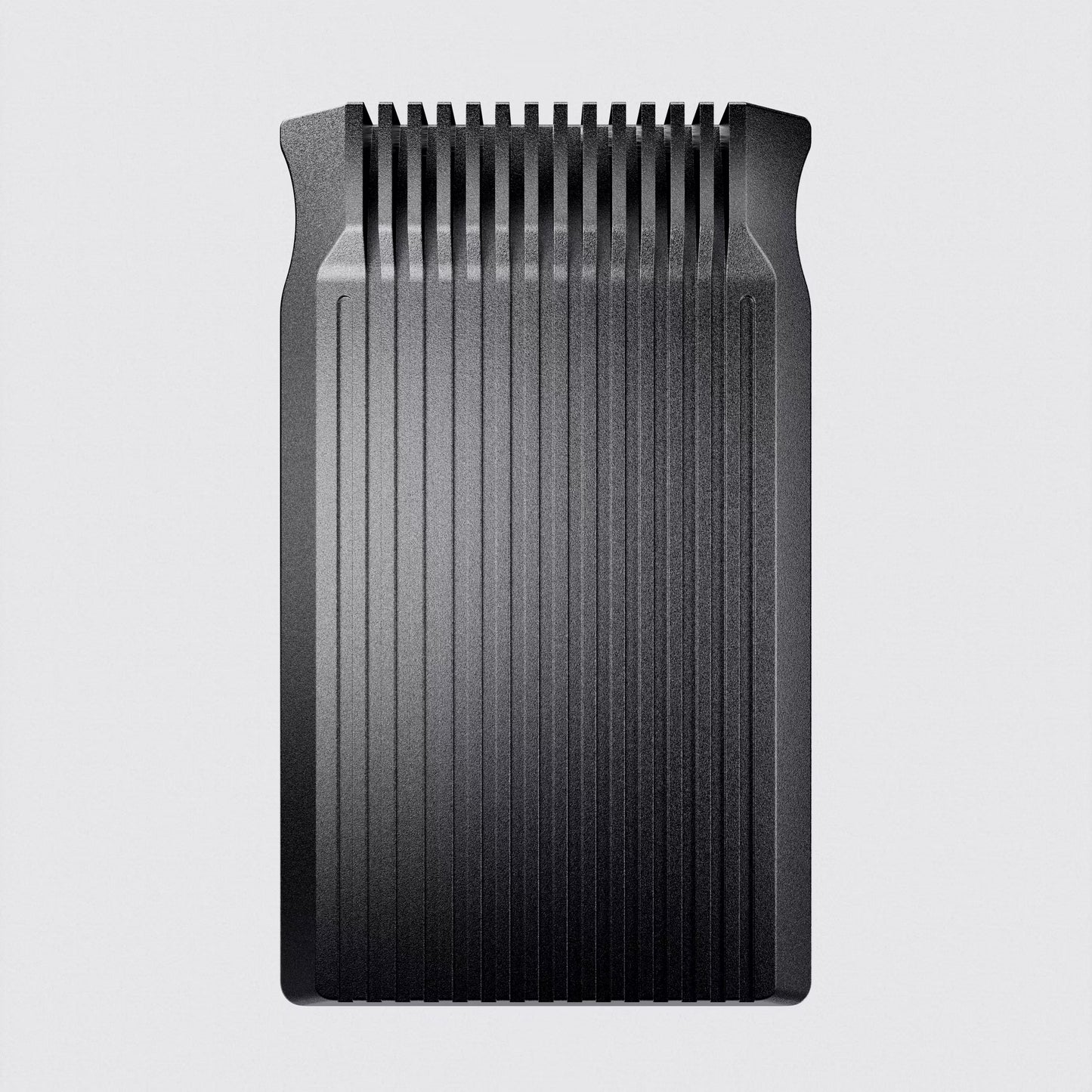

Material: CNC-machined anodised aluminum
Dimensions: Matches RED Mini-Mag form factor
Weight: Similar to original RED Mini-Mag (~90g est.)
Specification
Specification
Box dimensions: 120mm x 90mm x 22mm
Share
SHOOT READY.

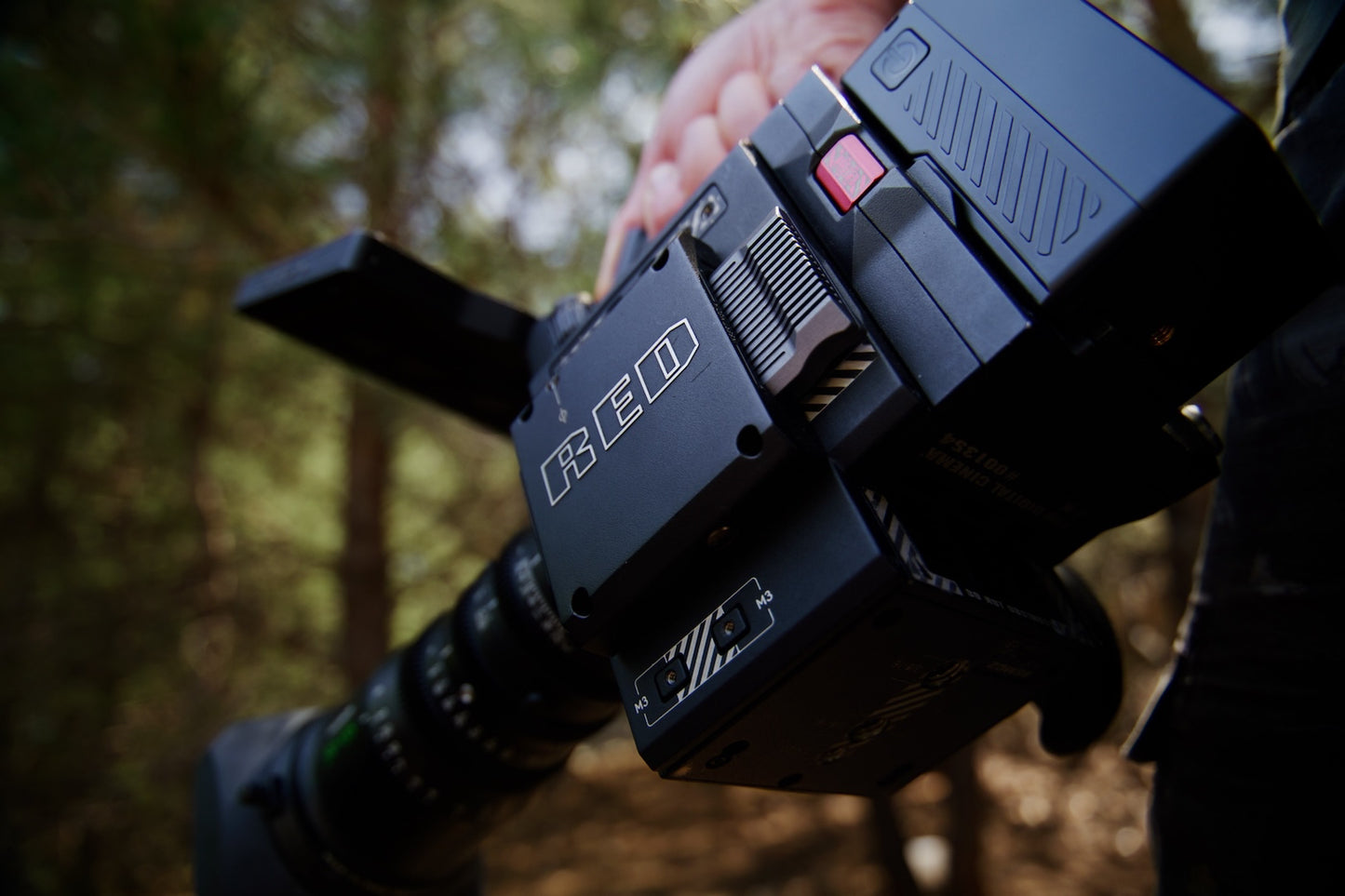

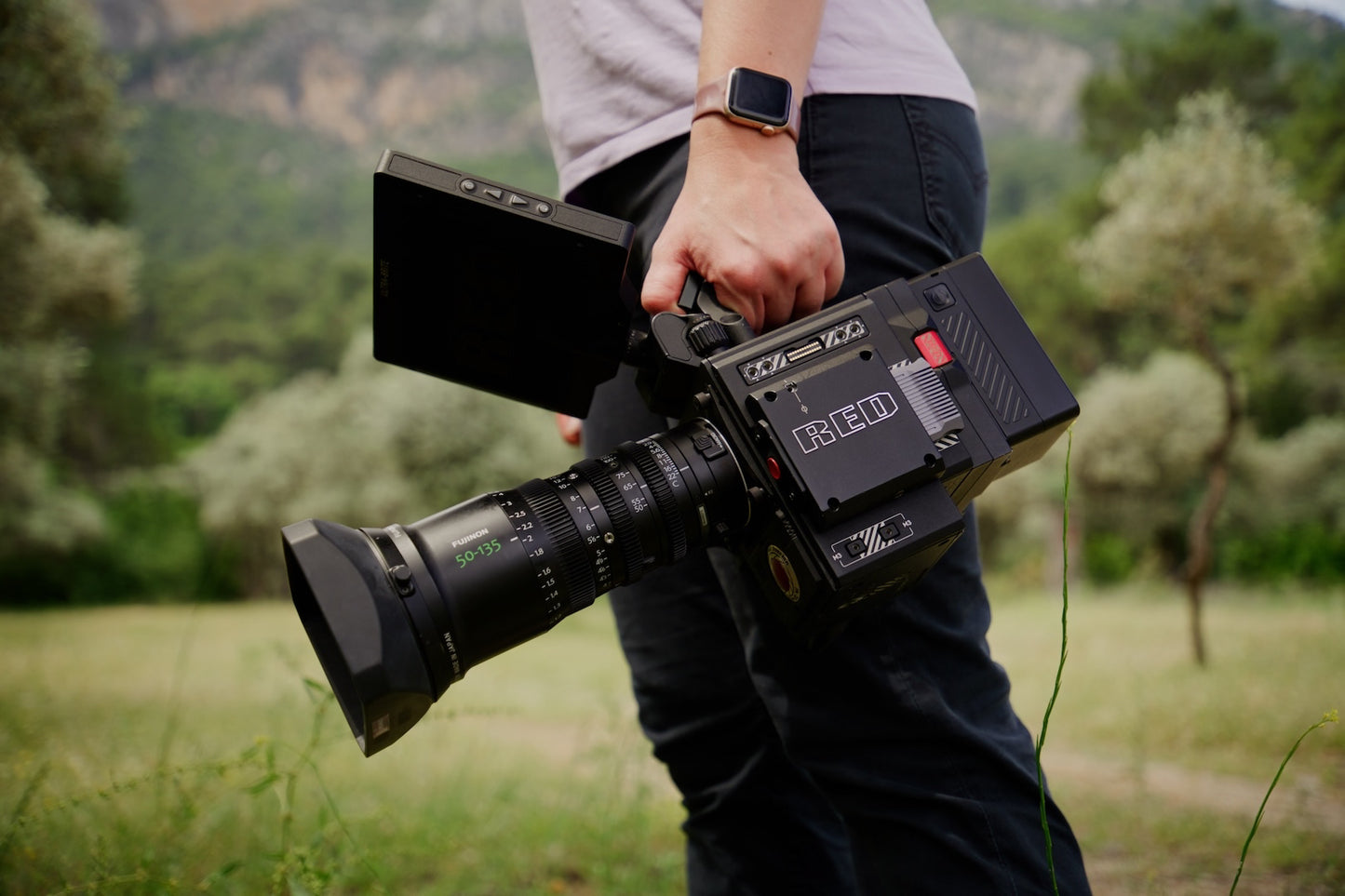

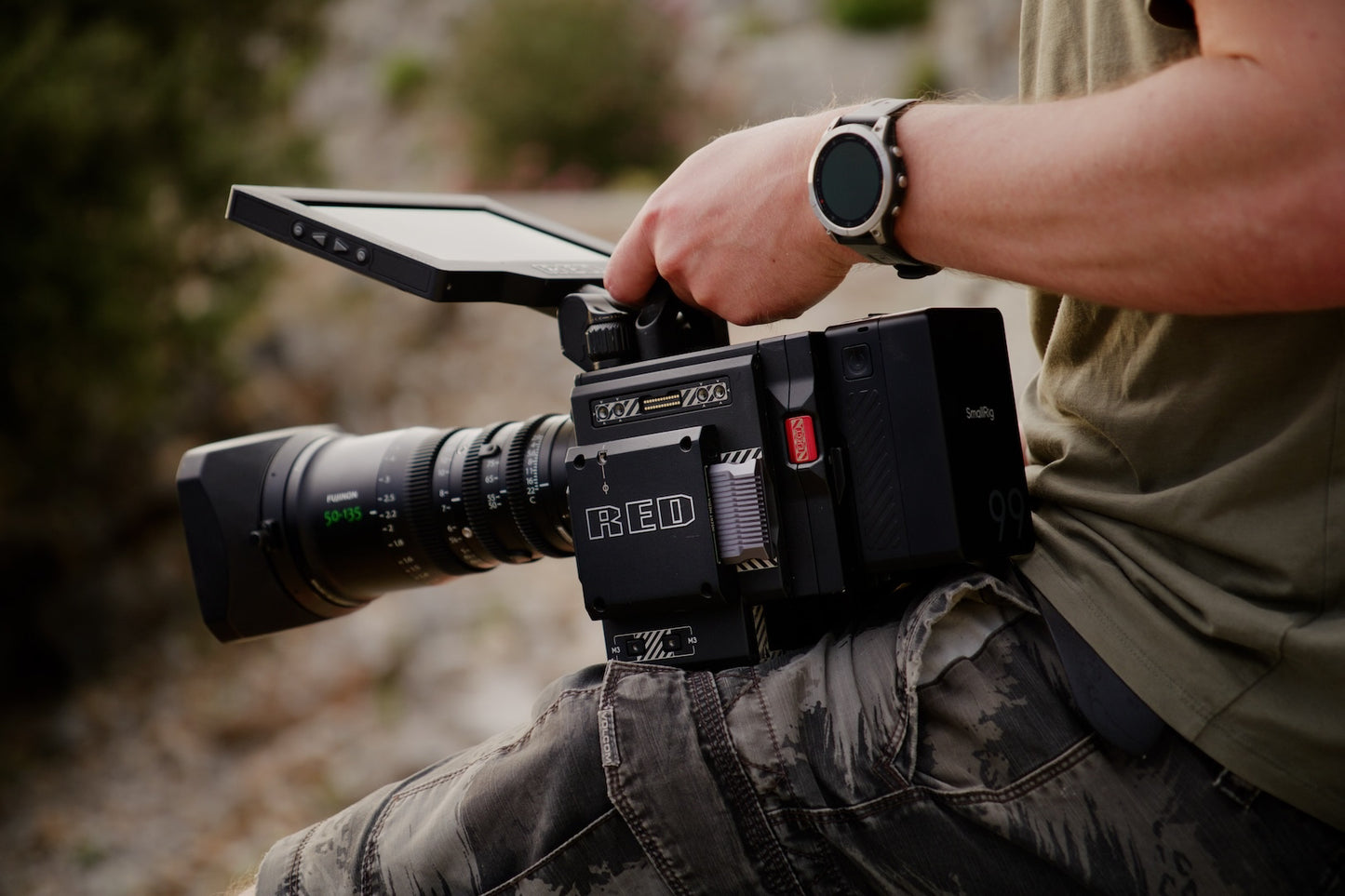

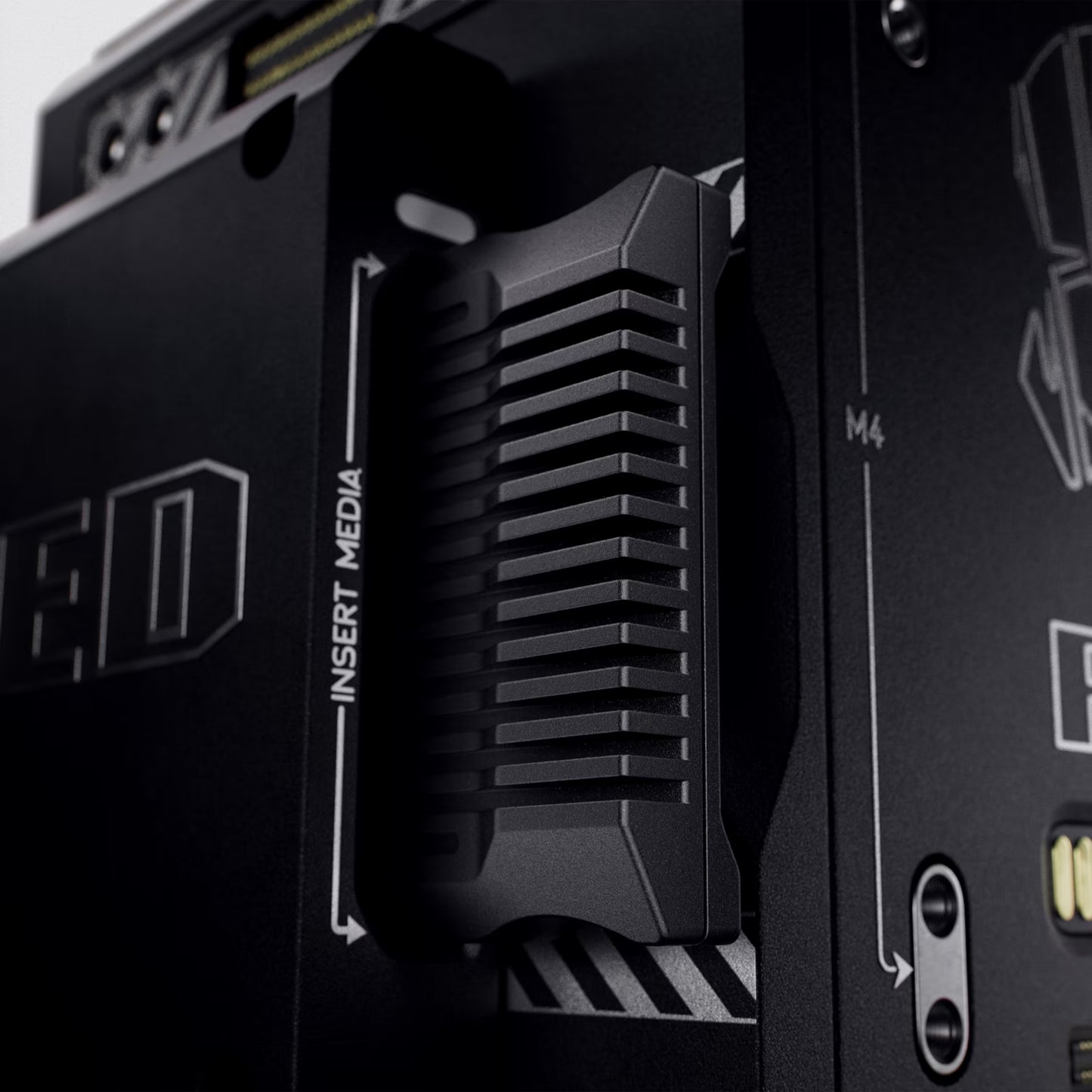

NEXA-MAG is engineered for RED® DSMC1 (with mini-mag module) and DSMC2 and it’s proven in the field. From commercial shoots to demanding outdoor productions, it’s been tested in real-world conditions by working filmmakers who rely on stable, high-speed media every day.
FEATURE
FULL POWER.

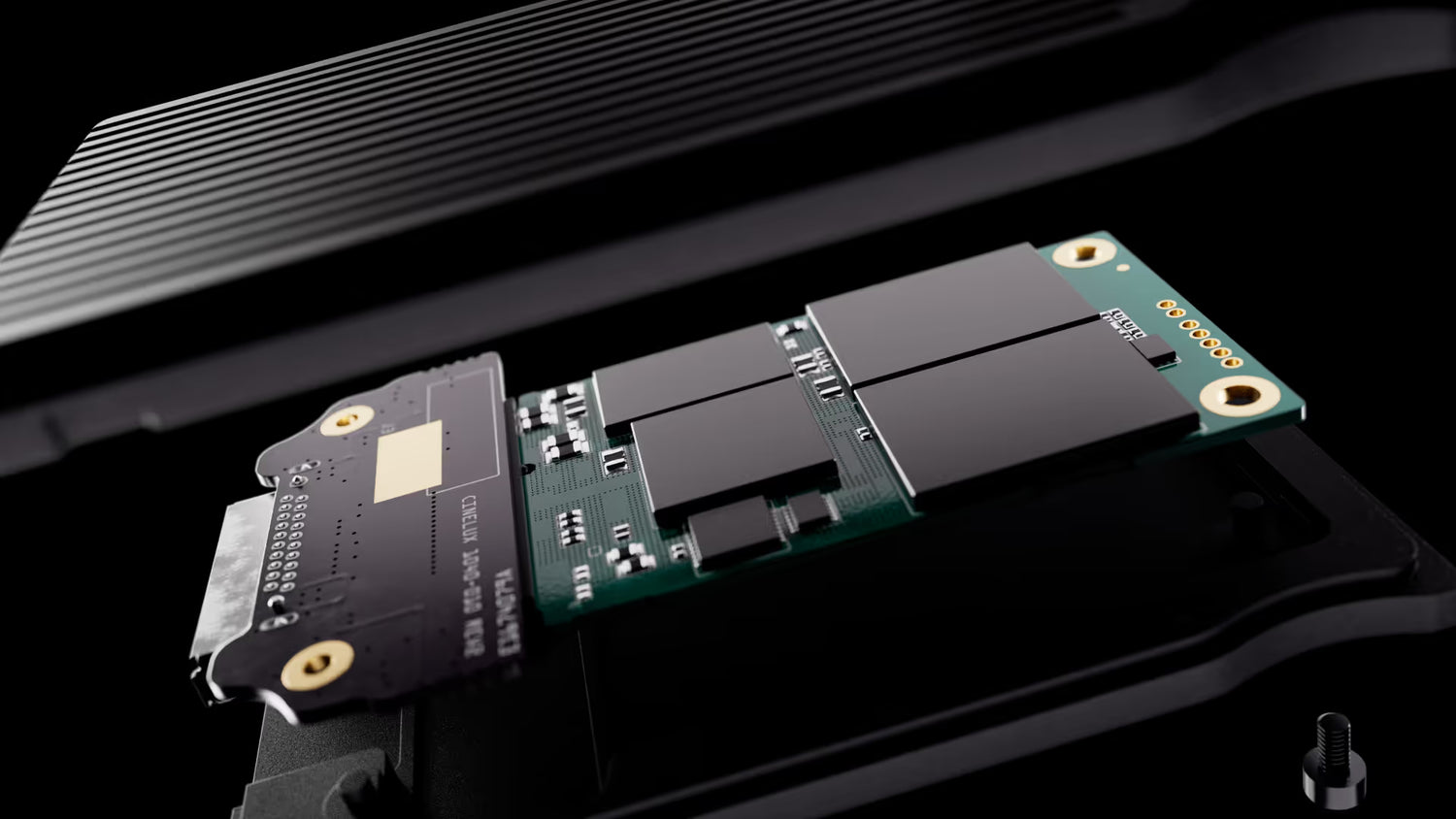

Older 960GB mini-mags used double the Toshiba components but only accessed half a channel of bandwidth. With NEXA-MAG, we’ve upgraded to a newer generation of Toshiba chips, cutting component count in half while unlocking the full bandwidth channel. The result is 25% faster read speeds, increased reliability with fewer connections, and a lifespan of up to 3000 Terabytes Written (TBW).
FEATURE
MORE LIFE.

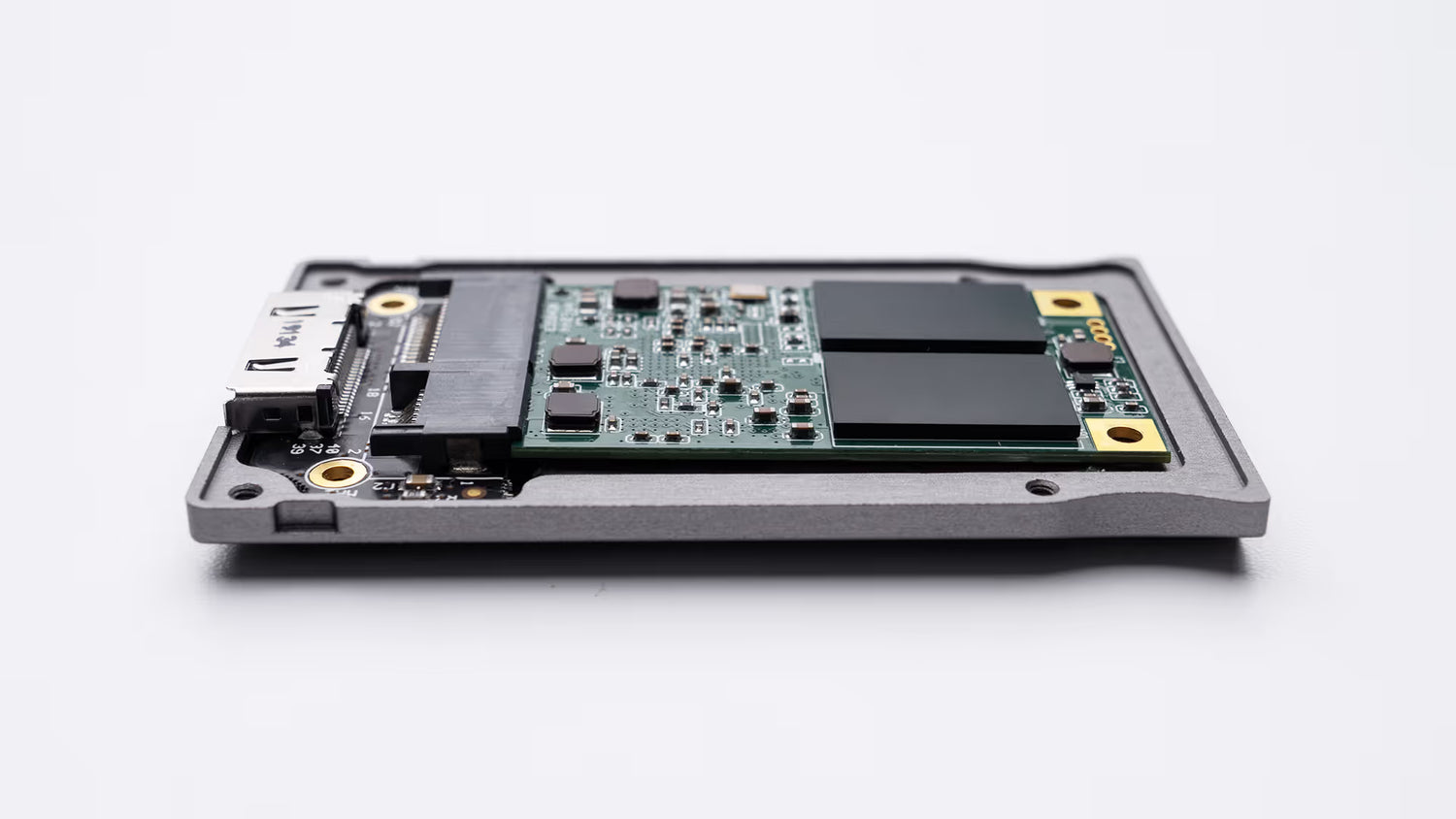

Built around ultra-cool running Toshiba components, NEXA-MAG utilises the latest compatible generation of SSD technology. Our drives are rated up to 3000 Terabytes Written (TBW)—over four times the lifespan of a standard Samsung 1TB SSD (720 TBW).
FEATURE
OFFLOAD FAST.

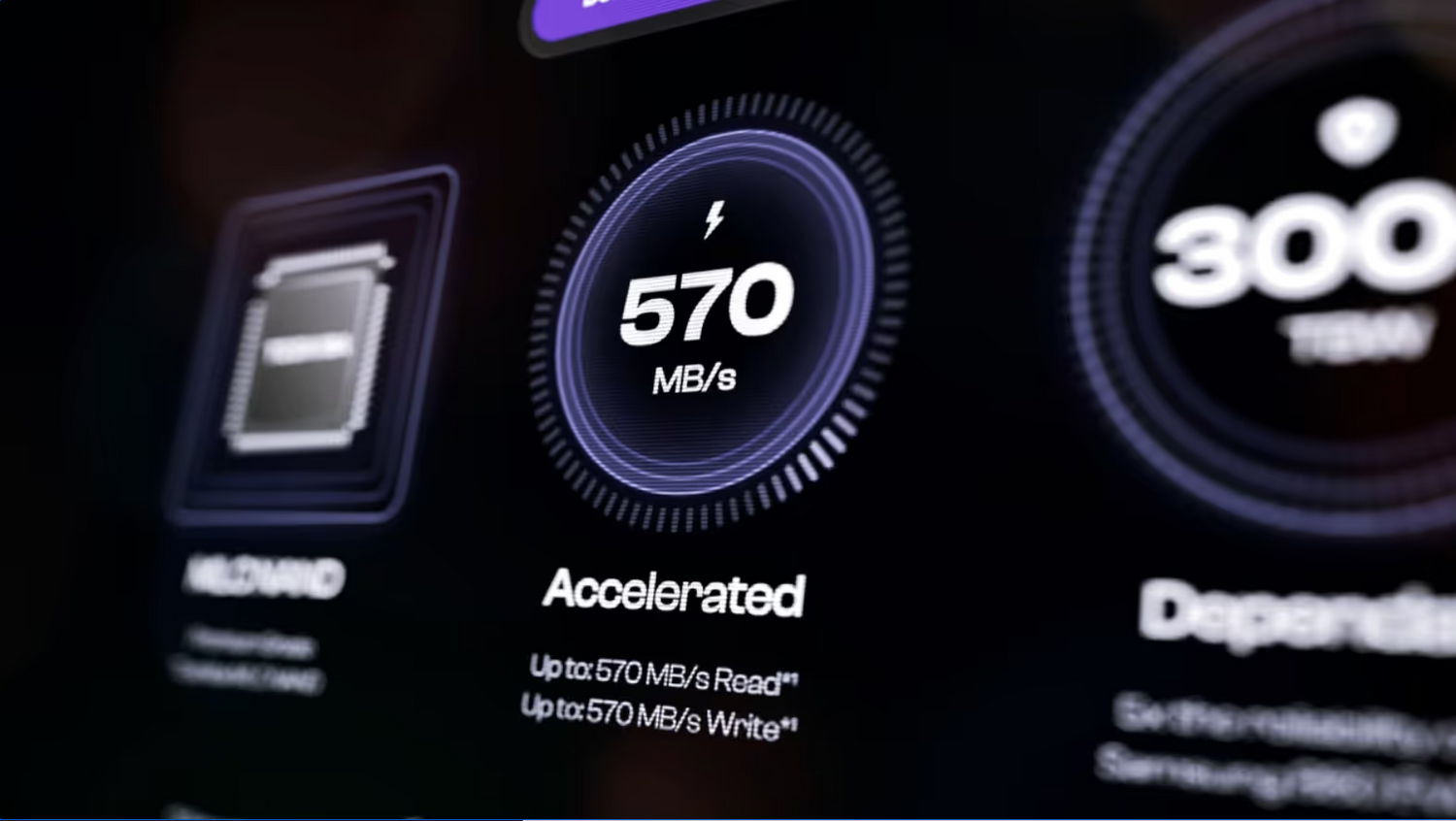

NEXA-MAG achieves offload speeds of up to 570MB/s, a 25% increase over original Mini-Mags. While constrained by SATA III limitations, this is the maximum performance possible for this format - reducing transfer times and maximising shooting efficiency.
Take a Closer Look
FAQs
Do NEXA-MAGs work in a standard RED Mini-Mag reader?
Yes, they are fully compatible with standard RED Mini-Mag readers.
Are there any firmware updates required to use NEXA-MAG?
Yes, for DSMC1®️ and DSMC2®️, you must be running firmware version 6.3.75 or later. For RED ONE®️, you must have the latest firmware installed, version 32.0.3.
Can NEXA-MAG be used interchangeably with RED MINI-MAGs on the same project?
Yes, they act and handle exactly like the original media.
How does KipperTie use a consumer-grade M.2 Samsung drive?
KipperTie uses a SATA-based M.2 Samsung drive that can communicate using technology compatible with RED cameras. While these drives are cost-effective to purchase, getting them to work reliably with RED systems is extremely challenging without direct cooperation from Samsung, as there are over 15-20 specific parameters that have to be setup correctly
Consumer-grade drives, while cost-effective, are less suitable for a few key reasons:
Heat Generation: These drives produce excessive heat, risking thermal throttling, camera cooling strain, and potential long-term damage to sensitive components during extended recording sessions.
NAND Quality: Consumer drives typically use TLC NAND, designed for casual use, lacking the endurance needed for continuous RAW data recording and frequent read/write cycles.
Lifespan: For example, KipperTie's Samsung-based 2TB MINI-MAG® uses TLC NAND rated for 1,200 TBW (600 full drive cycles), while our 960GB SSD with Toshiba MLC NAND is rated for 3,000 TBW (3,000 full drive cycles), offering 5 x the reliability and longevity.
Why do you say NEXA-MAG is compatible with DSMC1?
Some DSMC1 cameras have had the mini-mag module upgrade. Our NEXA-MAGs will work in these cameras, not cameras that have the REDMAG module.
